FM ADA Compliance Kit with Rechargable Batteries

This portable, easy-to-use FM system provides everything you need to accommodate individuals for hearing accessibility in a small-group settings such as libraries, conference rooms and information desks.

Ships Soon

SKU
76773
  $1,999.99
Email to a Friend Email to a Friend
Product Description

The Americans with Disabilities Act (ADA) requires public facilities to provide equal access to people with disabilities, including those who are hard-of-hearing. Portable, "all-in-one" ADA compliance kits from Williams Sound are a convenient and economical solution for satisfying these requirements.

The Williams Sound FM ADA Kit 37 provides everything you need to accommodate individuals for hearing accessibility in a small-group settings such as libraries, conference rooms and information desks. This portable, easy-to-use FM system operates at 72-76 MHz on one of 17 selectable channels. This single kit satisfies ADA requirements for multiple-room facilities, and comes with rechargeable batteries for added flexibility.

Covered by a Lifetime PLUS Limited Warranty (90 days on accessories).

This system includes:

  • (1) PPA T46 transmitter
  • (4) PPA R37 receivers
  • (4) HED 027 headphones
  • (1) MIC 090 lapel microphone
  • (1) MIC 049 desktop conference mic
  • (1) CCS 029 system carry case
  • (2) NKL 001 neckloops
  • (1) CHG 3502, two-bay charger
  • (5) BAT 026-2 AA rechargeable batteries
  • (1) IDP 008 ADA wall plaque
Specifications
Technical
Dimensions:4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
Weight:4.6oz (130g) with batteries. 2.6oz (73g) without batteries
Color:Black
Battery Type:(2) AA Alkaline or 2 x AA NiMH
Battery Life:Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
(2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
Current Consumption:52mA nominal
Temperature Range:- 0 to 50C
Channels17, accessed via seek button in battery compartment
Operating Freq.:72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
Intermediate Freq.:75 kHz
FM Deviation:75 kHz
De-Emphasis:75 µS
LED Indicator:Power: Green; Low Battery: Flashes Green
AFC Range:± 120 kHz
Sensitivity:2 µV at 12 dB Sinad with squelch defeated
Input Overload:100 mV
Frequency Response:200 - 15 kHz
Modulation:FM, +/- 75 kHz peak deviation
Signal-to-Noise Ratio:65 dB min @ 100 uV
Receive Antenna:Integral with earphone/headphone cord
Audio Output:35 mW max, peak into 16 ohms
Output Connector:3.5 mm stereo/mono phone jack
Earphone:Earbud-type with foam cushion, 3.5 mm plug, 32 ?
Auto Shut-offEnters sleep mode after approx 6 mins of no RF signal
Approvals:FCC, Industry Canada, RoHS, WEEE
Warranty:Lifetime PLUS Limited Warranty, 90 Days on most accessories.
Brand Williams Sound
Manufacturer Name Williams Sound
Assembly Required No
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Warnings
Choking Hazard No
Sterile No

You May Be Interest In

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.

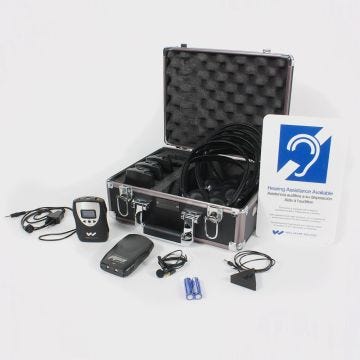

FM ADA Compliance Kit
Item # 76772
$1,899.99

Ships Soon

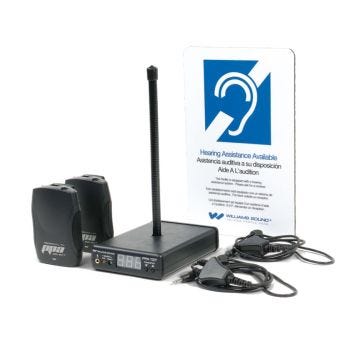

ADA Large Area Extra Value Kit
