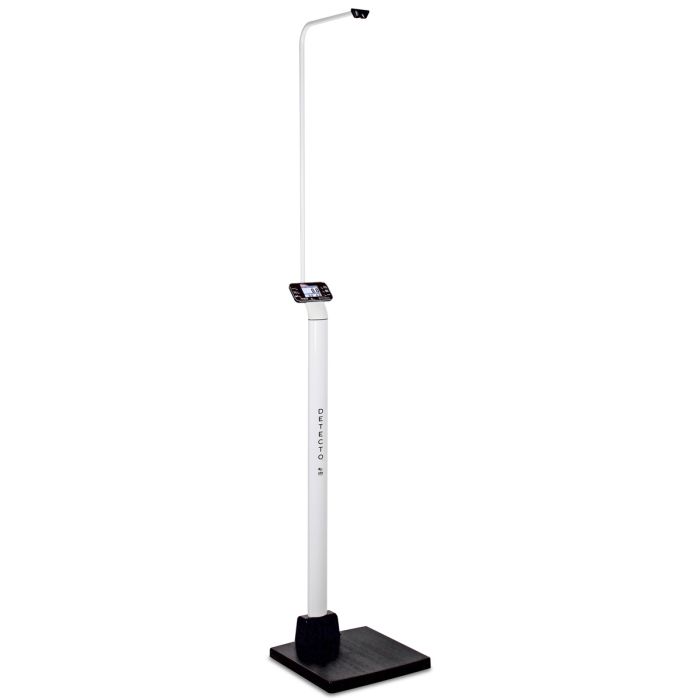

DETECTO ICON® Digital Scale with Sonar Height Rod

The DETECTO ICON® Digital Scale is eye-level and offers advanced features such as a sonar height rod, 1,000-lbs. weight capacity, a multi-color touchscreen, along with Wi-Fi/Bluetooth capabilities for instant weight, height, and BMI measurements.

Ships Soon

SKU
1007721
  $1,999.99
Email to a Friend Email to a Friend
Product Description

The DETECTO ICON® Digital Scale is eye-level and features advanced technology, including a sonar height rod and an ultra-thin 1.5-inch platform. The scale supports up to 1,000 lbs. (500 kg) and locks weight, height, and BMI for seven seconds for easy viewing and recording. The touchless rod, integrated display, and sturdy column design ensure patients can step on the platform and receive quick, accurate, and hygienic results.

Features:

  • Units locking into kilograms or pounds
  • Wi-Fi/Bluetooth connectivity included for wireless EMR/EHR
  • One USB-B port
  • AC adapter (included) or 12 AA batteries (not included)
  • Assembles in seconds
  • BMI calculation
  • HL7 IEEE 11073 Compliant (standard)
  • Measures weight, height, and BMI without pushing a single button
  • Platform size: 17” W x 17” D x 1.5”H
  • Touchless Sonar-Height-Rod
  • Auto weight lock
Specifications
Brand DETECTO
Height 1
Width 2
Length 1
Contents
SPECIFICATIONS:

Capacity:   800 lbs. x 0.1 lbs. /360 kg x 0.05

Platform Size:   17” W x 17” D x 1.5” H / 43.2 cm W x 43.2 cm D x 3.8 cm H

Weighing/Height Units:   Pounds/Inch (lbs., in) or Kilograms/Centimeters (kg, cm) with Units Locking

Power:   AC adapter (included) or 12 AA batteries (not included)

Height Rod Type:   Touchless Sonar-Height-Rod

Height Rod Measures:   24” (2’) - 86” (7’2”) x 0.2 in / 60 cm - 218 cm x 0.5 cm

Overall Dimensions:   17” W x 18.5” D x 89.5” H / 43 cm W x 47 cm D x 227.3 cm H

Port:   1 USB-B port

Device Connectivity:   HL7 IEEE 11073 compliant (standard); Wi-Fi/Bluetooth is included standard for wireless EMR/EHR; Welch Allyn® device connectivity available on some models (CVSM, CSM, and LXI).

Net Weight:   22 lbs. / 10 kg

Keypad:   Mechanical switch type with 7 buttons: Power, Zero, Lock/Release, ID, Cycle Display Mode, Menu, Print

Display Type:   3.2” (diagonal) full color TFT display 320x240 resolution

Number of Characters:   Weight: 5 digit, 0.8 in (20 mm) high; Height: 4 digit, 0.35 in (9 mm) high; BMI: 3 digit, 0.35 in (9 mm) high

Operating Environment:   Operated Temperature Range: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 0 to 90% non-condensing

Touch Screen:   Resistive touch panel covering the display

Country of Origin:   Country of Origin: USA
Assembly Required No
