Enabling Devices Eye Blink Switch

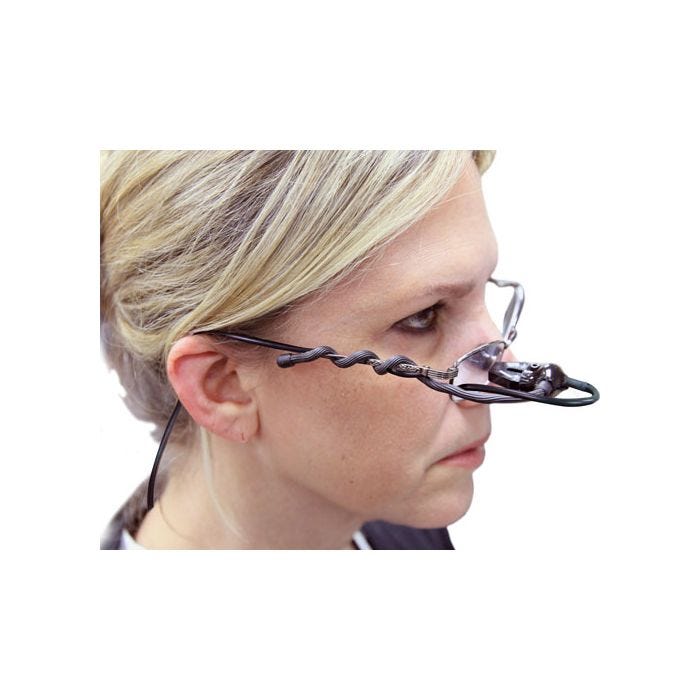

Easy to position with unique mounting. Just aiming the sensor at the eye will allow the user to control communication devices, toys, or computers.

Controls give momentary, timed (1 to 120 seconds), or latched output. Internal circuitry can be set to activate with each eye blink or with every double eye blink to ignore normal eye blinking. An adjustable holder easily mounts to most eyeglass frames or head bands. Eyeglasses not included.

Operates with one 9-V alkaline battery (not included). 4-1/2"L x 2-1/2"W x 1"H. Lightweight, 8 oz.

Available Modes:

• MOMENTARY: Operates as a momentary switch. The device connected activates each time the eye blinks. Each eye blink will make single switch activation. (Only in standard eye blink mode).
• TIME: Operates as a timed switch. The device runs for a set amount of time (1-120 seconds) when the switch is activated. Adjusting the timer knob clockwise increases the run time, counterclockwise decreases.
• LATCH: Operates as an On/Off switch. The connected device goes On with the first eye blink or two purposeful eye blinks and stays On until the second eye blink or two purposeful eye blinks.

Heat shrink tubing included separately for use in mounting if desired
