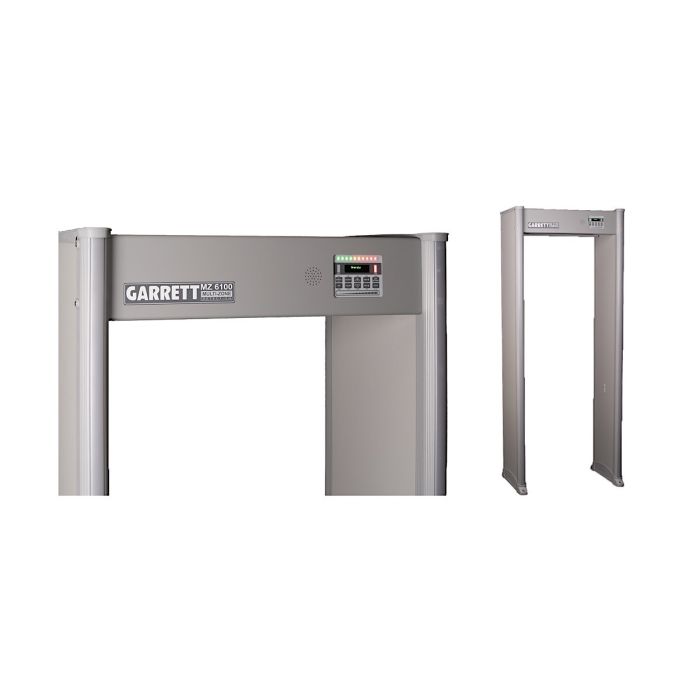

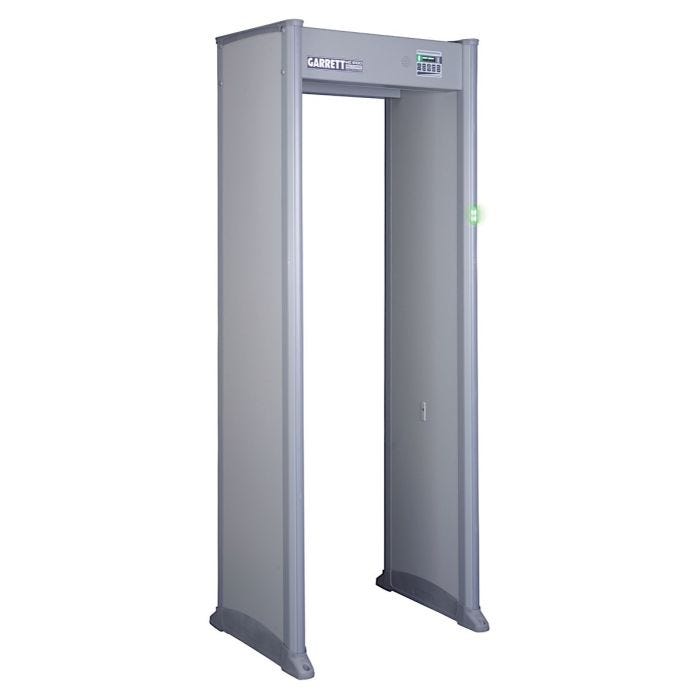

Garrett MZ6100 Walk-Through Metal Detectors

Competitively priced, Garrett’s MZ6100 walkthrough metal detector provides enhanced performance and superior versatility. More than 15 special program selections have been engineered to meet the varying requirements of schools, stadiums, government buildings, airports, special events, prisons, night clubs, entertainment venues, loss prevention, and more. The MZ6100’s bright LED indicators are highly visible in the brightest sunlight. The unit’s 20 vertical zones provide precise pinpointing for one or more objects simultaneously, and advanced circuitry allows multiple detectors to operate as close as 2 inches from each other. Operator adjustments are simple, thanks to an intuitive menu design and slider bar settings access. The MZ6100 also includes an Auto Setup feature that chooses the optimal operating frequency based on the electromagnetic environment.

• Fast, easy, versatile security.

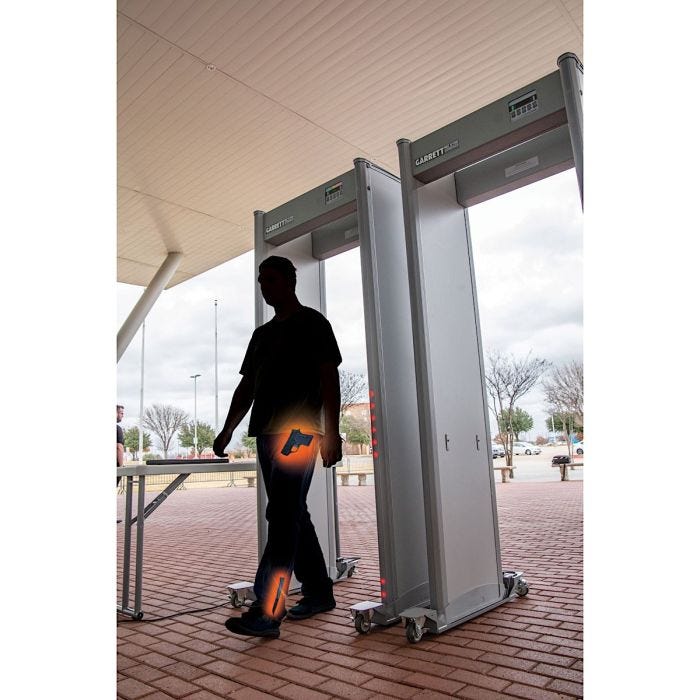

• Equipped with optional casters and battery module, the MZ 6100 can be rapidly deployed at special events, schools, and other large venues.
• No wires to deal with. Easy to move to another location with a moment’s notice.

Detection Zones: 20 independent zones

Multi-Unit Synchronization: Synchronization with wired AC power lines or with manual frequency selection for wireless operation. Auto frequency scan for wireless operation

Visual Displays: Bright LED indicator lights on entry and exit sides of Panel A (Panel B zone light kit optional). Status lights are individually configurable as pace lights, ready/alarm lights or disabled.

Access Control: Ten-button operation with full alpha-numeric 5-digit access code. Enable and disable keypad function with a rocker switch locked inside the detector head.

Passageway Interior Size:

• Width 30" (0.76 m)
• Height 80" (2.03 m)
• Depth 23" (0.58 m)
  • (32” versions are also available)

Overall Exterior Size:

• Width 35" (0.90 m)
• Height 87" (2.21 m)
• Depth 23" (0.58 m)

Shipping Weight: 151 lbs. (68.5 kg)

Operating Temperatures: -4º F (-20º C) to +140º F (60º C); Humidity to 95% non-condensing.

Power: Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed.

Regulatory Information: Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP and IEEE. Additional certifications pending.

Weatherproofing: Meets IP 55, IEC 529 Standard for moisture, foreign matter protection

Construction: Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.

Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices. Optional Relay module connected via RS 485 cable provides NO/NC relay contact (optional) Remote Control: Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote (optional) Networking: Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software.

Warranty: 24 months, limited parts and labor
