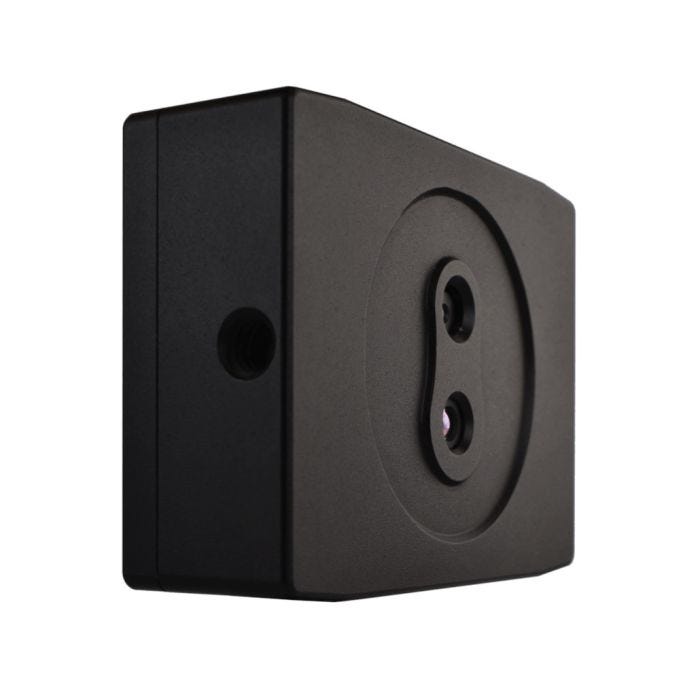

ICI FM 300 Kit & Package

The ICI FM 300 is:

• Rugged and durable with incredible sensitivity and image quality, the fixed mounted thermal imager is designed for easy installation.
• It provides audio alarms when an individual registers an elevated body temperature.
• Suitable for public places with orderly flows of people, such as airports, transportation hubs, shopping malls, schools and enterprises.
• Has throughput time of <10 seconds.
• Distance to object is 2-3 feet.

ICI FM 300 Kit contains:

• Camera
• Temperature Reference Device
• Stand for camera and laptop
• Tripod for temperature reference device (can be swapped for wall-mount arm)
• 1 year Training and Master Services Agreement (training, software adjustments, free loaner device if service required, etc)

ICI FM 300 Package contains:

• Camera
• Temperature Reference Device
• Laptop with pre-loaded software
• Stand for camera and laptop
• Tripod for temperature reference device (can be swapped for wall-mount arm)
• 1 year Training and Master Services Agreement (training, software adjustments, free loaner

device if service required, etc)

Specifications:

• Spectral Band: 7.5 μm ~ 13.5 μm
• Thermal Sensitivity (NETD): < 0.05 °C at 25 °C (50 mK)
• Frame Rate: ≤ 25 Hz
• Dynamic Range: 14-bit
• Temperature Range: -30 °C to 45 °C
• Operation Range: -30 °C to 80 °C
• Storage Range: -40 °C to 70 °C
• Humidity: 5% to 95% non-condensing
• Accuracy: ± 0.5 °C*2
• Pixel Operability: > 99 %
• Dimensions (without lens): 66 mm x 20 mm x 50 mm
  (L x W x H ± .5 mm)
• Power: DC 5V
• Power Consumption: < 700 m W
• Weight: 122 g
• Interface: Micro-USB
• Built in shutter
• Digital Camera Specifications:
• Detector Array: 1/4” CMOS
• Pixel Pitch: 3 μm
• FOV: customizable
• Camera: 5 MP, 1296 x 732, 30 Hz
• Chief Ray Angle: 17.5° – linear
• RGB color filter array
• Rolling shutter
