ICI FM 640+ Kit & Package

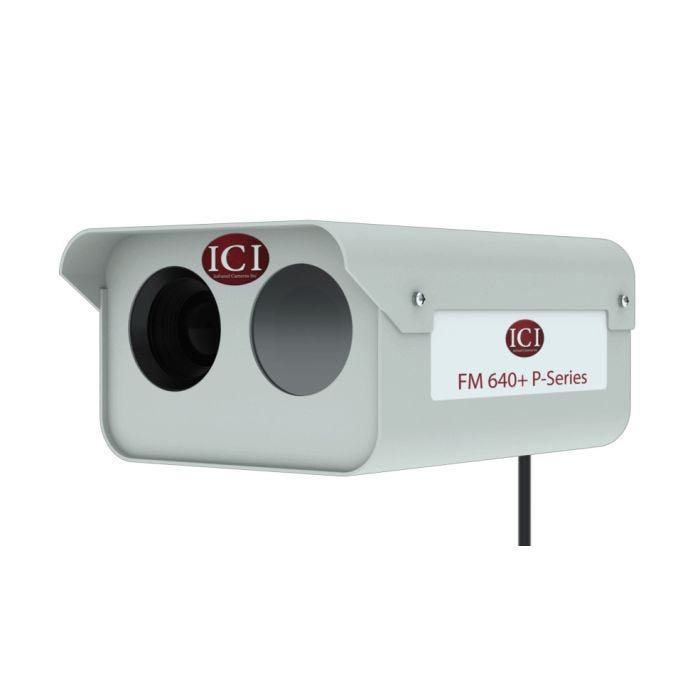

The ICI FM 640 Plus P Series IR Camera:

• With a 640 x 512-pixel resolution, the FM 640 Plus P features high accuracy and an AI algorithm to measure across large areas.
• This makes the system perfect for non-contact temperature measurement and radiometric imaging in public areas.
• Elevated skin temperatures trigger an alarm sound and image capture features for ease of use.
• This camera requires a firmware update to run IR Flash STM.
• Has throughput time of <2 seconds.
• Distance to object is 6-18 feet.

ICI FM 640+ Kit contains:

• Camera
• Temperature Reference Device
• Stand for camera and laptop
• Tripod for temperature reference device (can be swapped for wall-mount arm)
• 1 year Training and Master Services Agreement (training, software adjustments, free loaner device if service required, etc)

ICI FM 640+ Package contains:

• Camera
• Temperature Reference Device
• Laptop with pre-loaded software
• Stand for camera and laptop
• Tripod for temperature reference device (can be swapped for wall-mount arm)
• 1 year Training and Master Services Agreement (training, software adjustments, free loaner device if service required, etc)

Specifications:

• Detector Array: UFPA
• Pixel Pitch: 17 μm
• FOV: 34° x 26°
• Measurement Distance: lens dependent
• Pixel Resolution: 640 x 512
• Spectral Band: 8 μm to 14 μm
• Thermal Sensitivity (NETD): < 0.05 °C at 30 °C (50 mK)
• Frame Rate: 30 Hz
• Dynamic Range: H 264
• Temperature Range: 20 °C to 50 °C
• Operation Range: 0 °C to 50 °C
• Storage Range: -40 °C to 70 °C
• Humidity: 5% to 95% non-condensing
• Accuracy: ± 0.3 °C
• Pixel Operability: > 99 %
• Dimensions: 192 mm x 135 mm x 85 mm
  (L x W x H ± 0.5 mm)
• Power: 12V < 15 Watts
• Weight (without lens): 1500 g
• Interface: RJ-45 Ethernet
• Visible Camera: 1920 x 1080
• Video: H.264 for IR and visible
• Emissivity Correction: 0.1 to 1.0
• IP Rating: IP 54
• Built in shutter

ICI IR Flash 1.0 Software Requirements:

• Processor: i5 or above
• RAM: 4 GB or above
• OS: Windows 8/8.1/10
• Hard Drive: 256 GB or above
