- MAICO easyTone Pure Tone Headphone Audiometer with Tablet
MAICO easyTone Pure Tone Headphone Audiometer with Tablet
Ships Soon
See Details
Item
1040843
Share
Quick Pass/Refer – Everybody Can Screen
Speed up your workflow! Intuitive tablet interface and trouble-free workflow enables hearing screening significantly faster than with conventional audiometers. easyTone shows clear pass/refer results that do not need any further interpretation.
Protocol Customization – Screen Your Way
With easyTone you can´t go wrong. Creating protocols tailored to your individual screening needs and test guidelines has never been easier. The quick and simple protocol setup wizard guides you through all selections to be certain in screening choices. Creating a personalized screening protocol for improved accuracy and consistency.
Guided Screening Workflow – Save Time and Focus
Your time is valuable. The easyTone has been designed to save your time by providing a guided screening workflow. The device is operated by only two buttons: “present tone” and “save result”. Everything else – like switching test frequencies and ears - works automatically. It makes screening a breeze!
Digitized Data Management
Frustrated by stacks of paper and hours of post-processing? easyTone minimizes the need for printed lists and for manually transferring results. Just export results as a pdf or send as an e-mail attachment. With the added Win/ macOS desktop companion software you can easily exchange screening lists and results between your computer and easyTone. This saves time, resources and is cost-efficient.
Audiometer Headphone – Full Function in Compact Design
The power of a state-of-the-art audiometer in a convenient headphone. The unique design incorporates an ANSI Type 4 audiometer with calibration housed within the headphone and not bound to a specific tablet. The proven circumaural design offers high sound attenuation. A built-in noise monitor ensures ambient noise compliance requirements. Fast and dependable test results - that's easyTone.
Optional: Patient Response Switch for DD65 V2A - SH Part #1041167.
Optional: USB-C Hub - Simultaneously charges the easyTone tablet while screening - SH Part #1041377.
EASYTONE SPECIFICATIONS
|
Test Signals |
Pure tone and warble tone (pulsed and continuous) |
|
Test Frequencies |
125, 250, 500, 750, 1000, 1500, 2000, 3000, 4000, 6000, 8000 Hz |
|
Level Steps |
5 dB |
|
Hearing Level Range AC |
-10 dB HL to 100 dB HL |
|
Language |
English, Spanish |
|
Dimensions |
W x D x H: 7.5" x 3.6" x 5.3" |
|
Weight |
0.85 Ibs |
|
Power Supply |
via USB |
|
Output |
USB-C |
|
Input |
Patient response switch |
|
Noise Monitor |
Built-in microphone
|
TABLET SPECIFICATIONS
|
Resolution |
1280 x 800 pixel |
|
Screen Size |
10" |
|
Operating System |
Android |
|
Version |
10 |
|
Input |
USB-C
|

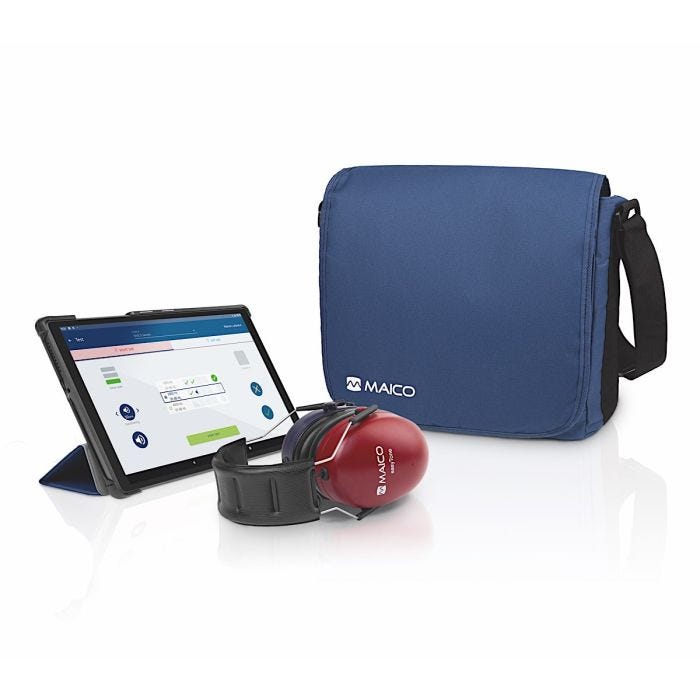

STANDARD COMPONENTS
AC headphone (easyTone)
- Android™ tablet
- Carrying case
- easyTone app
- easyTone companion software
- Power supply
- Tablet case
STANDARDS
|
Safety |
IEC 60601-1: 2005 + Corr. 1:2006 + Corr. 2:2007 + AM1:2012 ANSI/AAMI ES60601-1:2005 + A2:2010 CAN/CSA-C22.2 No. 60601-1:14 Type B applied parts |
|
EMC |
IEC 60601-1-2:2014 + AMD1:2020 |
|
CE 0123 |
Class IIa according to Medical Device Regulation (EU) 2017/745 |
|
Audiometer |
ANSI/ASA S3.6-2018 Type 4 |
| Brand | MAICO |
|---|---|
| Height | 5.3 in |
| Width | 7.5 in |
| Length | 3.6 in |
| Assembly Required | No |
Write Your Own Review
| Choking Hazard | No |
|---|---|
| Sterile | No |
