Sip/Puff Switch with Headset

Two pressure switches have normally open contacts that close when the user sips or puffs on an attached mouthpiece.

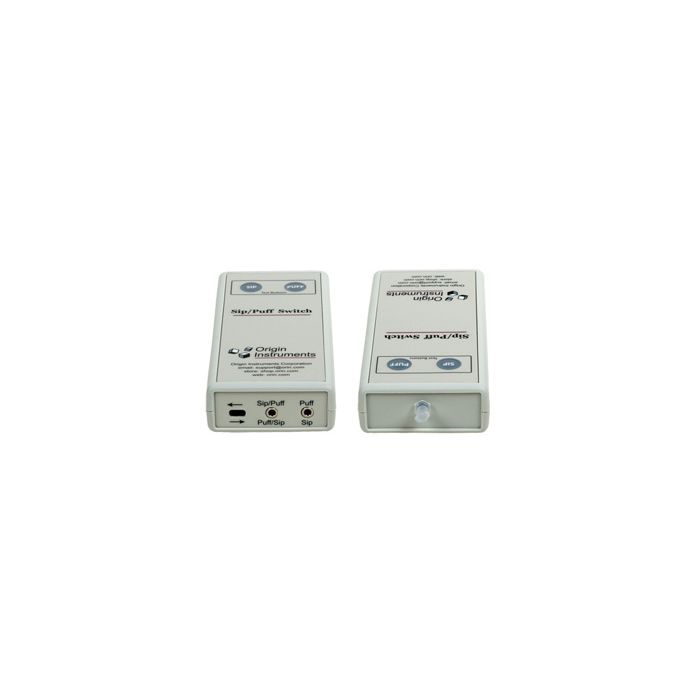

Dual pressure switch has two 3.5-mm (1/8-inch headphone) connectors. One connector provides both sip and puff events with a stereo cable. Simple slide switch can be used to change the sense of Sip and Puff signals on the stereo connector.

All user interface solutions can be attached to the separate, dual pressure switch using a simple twist-on pneumatic connector.

Headset is a comfortable, adjustable head frame. Padded headset slips over ears and behind the head. Replaceable mouth tube is held in position with an integral stainless steel forming wire. Tube and wire can be bent and cut to adapt to individual needs.

Includes Sip/Puff Switch with integrated "sip" and "puff" pressure switches (no external power required), headset with attached 6-foot air tube and twist connector for attaching to sip/puff switch, two 5-foot cables (one mono and one stereo), four sip/puff mouth tubes with integral stainless steel forming wire (one attached to headset), and documentation.

Please note:   we regret that we cannot allow sip & puff product returns, including the products on this page, because of sanitary and personal hygiene reasons.
