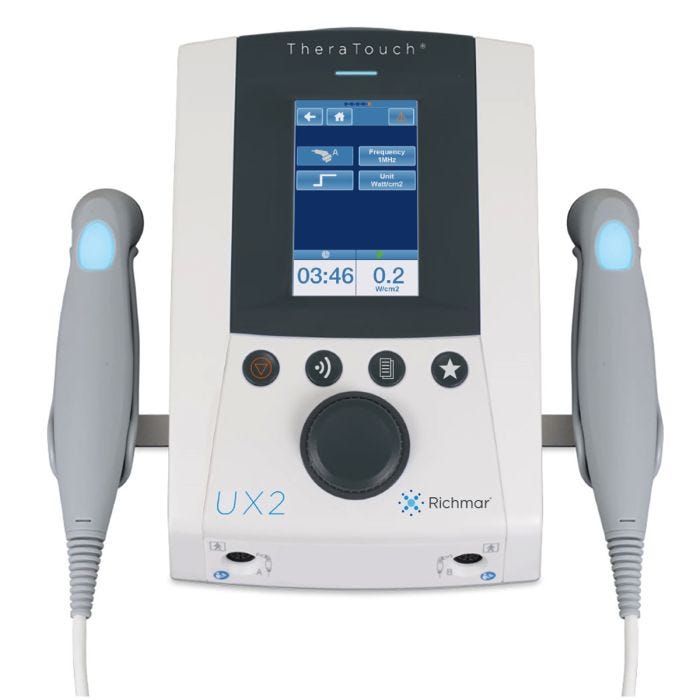

TheraTouch UX2

Equipped with a menu-driven, color touchscreen interface that intuitively groups and displays clinical protocols to guide clinicians step-by-step to ensure the ideal therapeutic treatment.

Benefits:

• Appropriate parameter settings
• Ultrasound applicator recommendations
• Dual-holster design to accommodate both size applicators
• Ergonomic designed sound head acts as an excellent ERA

A few simple key presses are all that is needed to quickly start a treatment. Parameters can be easily selected and adjusted. Clinicians can choose to use preset clinical protocols or customize their own. The “favorites” feature allows user defined protocols to be stored for future use. The UX2 offers a comprehensive library with treatment education for better treatment outcomes and improved clinic efficiency.

Features:

• Comprehensive library provides treatment education
• Sleek, user-friendly, ergonomic design for tabletop or therapy cart use
• Large, easy-to-read, color LCD display with touch screen interface
• Clinical protocols provide parameters for a variety of acute and chronic conditions
• “Favorites” feature allows storage for up to 99 custom programs for future use
• 1 and 3 MHz ultrasound frequencies
• Pulsed and continuous modes
• Comes with 1 cm2 and 5 cm2 applicators
• Low BNR ratio 5:1
• Ultrasound amplitude can be toggled between W and W/cm2
• Sound head coupling feature
• Optional therapy cart integrates with the unit and keeps supplies organized and ready for treatments
• The only ultrasound unit on the market that comes standard with dual soundheads (both 5cm size & 1cm size)
• Loaded clinical protocols make therapy selection simple & quick
• Industry leading 3-year warranty

Technical Specifications:

• Number of channels: 4, Isolated
• Treatment time: 1 – 60 min, adjustable
• Power supply: 100–240 VAC, 50-60 Hz
• Duty factor: (L, M, H): 30%, 40%, 50%
• Dimensions: 11.25" x 7.75" x 9.5"
• Weight: 5 lbs.

Ultrasound Specifications:

• Frequency: 1 and 3 MHz
• Duty cycles: Pulsed and Continuous
• Pulse frequency: 100 Hz
• Pulse duration: 1 – 9 mSec ± 10% (set by duty cycle)
• Ramp (fixed): 1s
• Treatment time: 1 – 60 minutes
