HeartSine samaritan PAD 450P - Semi-Automatic

Excluded from Promotions

The Heartsine Samaritan 450P has all of the same great features of the 350P (compact design, low cost of ownership, easy maintenance, and an industry leading IP rating) PLUS it incorporates an intuitive LED-based visual CPR feedback feature that operates in tandem with the verbal prompts enabling rescuers to operate in extra noisy environments.

In Stock

SKU
55907
  $1,761.99
Email to a Friend Email to a Friend
Product Description
The Heartsine Samaritan 450P has all of the same great features of the 350P (compact design, low cost of ownership, easy maintenance, and an industry leading IP rating) PLUS it incorporates an intuitive LED-based visual CPR feedback feature that operates in tandem with the verbal prompts enabling rescuers to operate in extra noisy environments.

Real-Time CPR Rate Feedback
  • ICG-Based Feedback. With its revolutionary technology, HeartSine's proprietary CPR Rate Advisor uses the SAM 450P via the defibrillator electrodes to determine the rate of CPR being applied, without any addition of accelerometers (or pucks) commonly used in other AED devices.
  • Easy-to-Follow Visual and Verbal Guides. Easy-to-understand visual and voice prompts guide a user through the entire CPR process, providing specific feedback on the rate of compressions.
  • Improved CPR Fraction. To ensure that CPR is consistently delivered, the SAM 450P continues to remind the rescuer to perform CPR when no CPR is detected.
Ready to Shock
  • Highest level of protection from dust and water. With its IP56 rating, the SAM 450P defibrillator offers unmatched ruggedness for a variety of environments.
  • Advanced technology. The SAM 450P utilizes proprietary electrode technology and patented SCOPE™* biphasic technology, an escalating and low-energy waveform that automatically adjusts for patient impedance differences, to assess rhythm and recommend defibrillation if necessary.
  • Most compact design. At 2.4 lbs and with a compact footprint, the SAM 450P is the most portable AED on the market.
Economical:
  • The Heartsine 450P Pad-Pak is a battery and electrode in one package, making the Heartsine 450P easier to maintain. Furthermore, the Pad-Pak has a shelf life of 4 years from the date of manufacture, which offers significant savings over other defibrillators that require separate battery and electrode replacements.
AED Package Includes:
  • HeartSine samaritan PAD AED with 8-Year Warranty
  • Pad-Pak Adult Electrode Pad and Battery Combo
  • Soft Case
  • HeartSine Saver EVO Software
Specifications
Technical Physical (With Pad-Pak™ Inserted)
  • Size: 20 cm x 18.4 cm x 4.8 cm/8.0 in x 7.25 in x 1.9 in
  • Weight (including Pad-Pak Battery): 1.1 kg/2.4 lbs
Defibrillator
  • Waveform: Self-Compensating Output Pulse Envelope (SCOPE) biphasic waveform. Optimized biphasic escalating waveform compensates energy, slope and envelope for patient impedance.
Energy Selection
  • Adult: Shock 1: 150J; Shock 2: 150J; Shock 3: 200J
  • Pediatric: Shock 1: 50J; Shock 2: 50J; Shock 3: 50J
Charging Time
  • New Battery: Typically 150J in < 8 seconds, 200J in < 12 seconds
  • After Six Discharges: Typically 150J in < 8 seconds, 200J in < 12 seconds
Patient Analysis System M
  • ethod: Evaluates patient's ECG, signal quality, electrode contact integrity and patient impedance to determine if defibrillation is required.
  • Sensitivity/Specificity: Meets ISO 60601-2-4 and AAMI DF80
Environmental
  • Operating/Standby Temperature: 0°C to 50°C/+32°F to +122°F
  • Temporary Transportation Temperature: -10°C to 50°C/14°F to 122°F for up to two days. Unit must be returned to standby/operating temperature for 24 hours before use.
  • Relative Humidity: 5% to 95% (non-condensing)
  • Water Resistance: IEC 60529/EN 60529 IP56
  • Altitude: 0 to 4,575 meters/0 to 15,000 feet
  • Shock: MIL STD 810F Method 516.5, Procedure I (40G's)
  • Vibration: MIL STD 810F Method 514.5+Category 4 Truck Transportation - US Highways Category 7 Aircraft - Jet 737 & General Aviation
  • EMC: EN 60601-1-2
  • Radiated Emissions: EN55011
  • Electrostatic Discharge RF Immunity: EN61000-4-3 80MHZ-2.5GHZ (10V/m)
  • Magnetic Field Immunity: EN61000-4-8 (3 A/m)
  • Aircraft: RTCA/DO-160F, Section 21 (Category M)
  • Falling Height: 1 meter/3.3 feet
Event Documentation
  • Type: Internal Memory
  • Memory Capacity: 90 minutes of ECG (full disclosure) and event/incident recording
  • Playback Capabilities: Optional custom USB cable directly connected to PC and Saver EVO Windows-based data review software
Materials Used
  • Housing: ABS, Santoprene
  • Electrodes: Hydrogel, Silver, Aluminium and Polyester

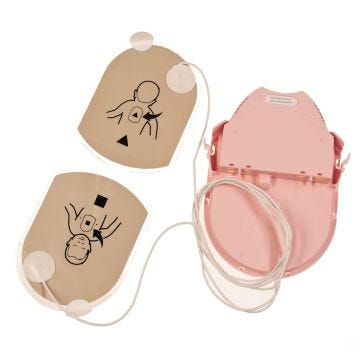

Pad-Pak
  • Shelf Life: Four years from manufacture date
  • Weight: 0.2 kg/0.44 lbs
  • Size: 10 cm x 13.3 cm x 2.4 cm/3.93 in x 5.24 in x .94 in
  • Battery Type: Lithium Manganese Dioxide (LiMnO2)
  • Capacity: > 60 shocks at 200J
  • 18V, 1.5 Amp Hrs
  • Electrodes: HeartSine samaritan disposable defibrillation pads are supplied as standard with each device
  • Placement: Anterior-lateral (Adult); Anterior-posterior or anterior-lateral (Pediatric)
  • Active Gel Area: 100 cm2 /15.5 in2
  • Cable Length: 1 meter/3.3 feet
Warranty 8 Year Manufacturer’s Warranty
Brand Heartsine
Assembly Required No
