Porter™ Fan Basketball Backboards

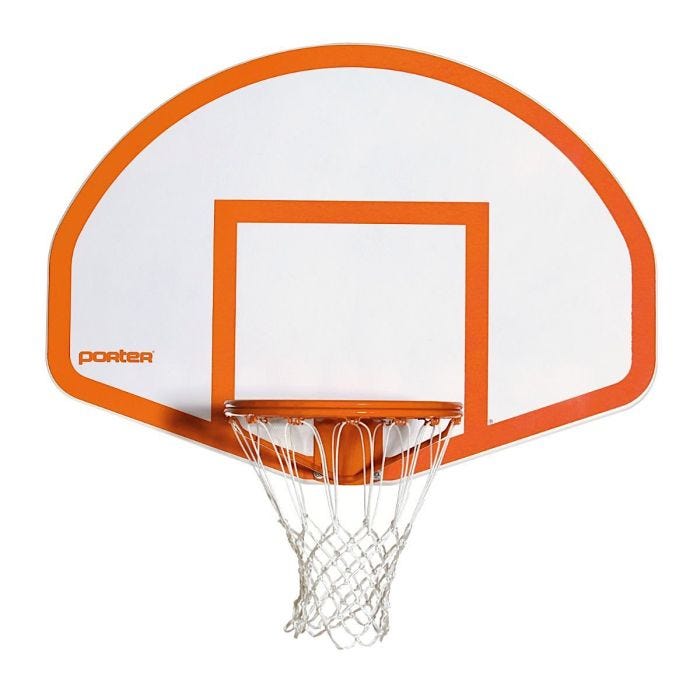

A Porter fan-shaped basketball backboard with an orange border and a matching target square. The set displays an orange steel rim and a white nylon net.

Choose from aluminum or fiberglass options. Each board measures 54” x 39” with an orange perimeter and target area striping. Backed by a limited lifetime warranty. Rim and net sold separately.

ITEM#	PRODUCT NAME	AVAILABILITY	PRICE	QTY/ACTIONS
1048142	Porter Aluminum Fan Backboard	Ships Soon		Quantity
1048144	Porter Fiberglass Fan Backboard	Ships Soon		Quantity

Product Description

Aluminum Board Features:

Cast aluminum backboard, 54” x 39”
White powder-coat finish w/ orange striping
Structural reinforced ribs on backside, with a heavy, 1.25” deep perimeter flange
Eight tapped holes (3/8 – 16) to fit normal mounting attachments without exposed bolt heads on front face of unit
Front mount type goal, 5” x 5”
Hexagon cavity allows for independent mounting to a center-strut support structure when goal removal is desired

Fiberglass Board Features:

Molded fiberglass backboard, 54” x 39”
White color with orange striping
Structural reinforced ribs on backside, with a heavy, 1.5” deep perimeter flange
Eight (3/8 – 16) stainless steel threaded inserts molded into the backside at standard mounting centers
Front mount type goal, 5” x 4.4” to 5” x 5”
Reinforced goal mounting with a 3/16” x 6” steel plate

Specifications
