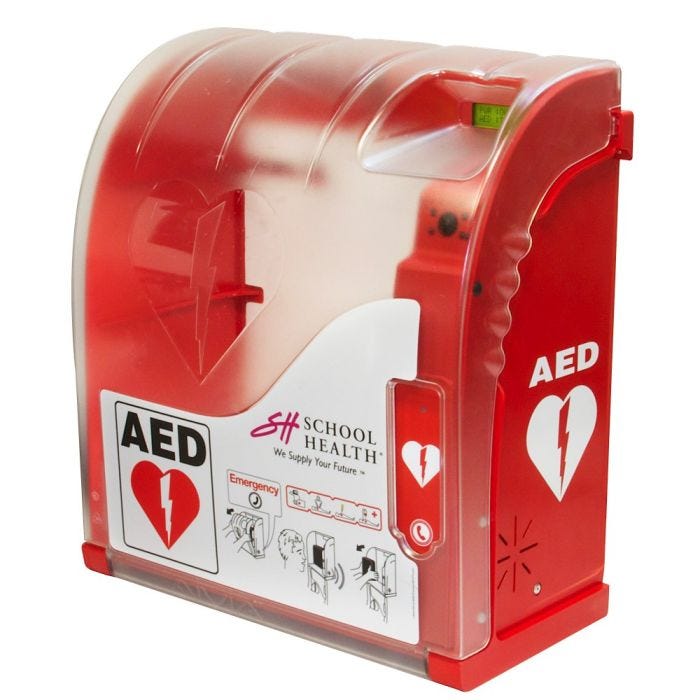

School Health – Smart Monitoring Outdoor AED Wall Cabinet, w/Strobe Alarm

OVERVIEW

STANDARD FEATURES

• Impact-resistant transparent polycarbonate cover and red ABS base
• Sensor monitoring the presence of the AED and the temperature surrounding the defibrillator
• Backlit LCD screen displaying the status of the power, network, temperature and presence of the AED
• Protected access to the AED thanks to security seal stickers
• Local visual warnings (flashing red LEDs) indicating incidents
• GSM : Emergency phone connection via the mobile phone network, using hands free telephone intercom. Automatic phone call is made in case of emergency when the cabinet is opened or when the call button is pushed as preset by user.
• Connection to local (LAN) Ethernet network plus possibility of wireless communication
• 4G communication: In addition to the standard Ethernet LAN connection, the cabinet and the AED it contains can also be monitored by 4G communication through the mobile phone network if a LAN connection is not available.
• Integrated light sensor to light up the AED compartment in dark locations
• 24V DC SELV (Safety Extra Low Voltage) for human safety
• RFID badge reader for maintenance purposes
• Rechargeable back-up battery for essential functions in case of power supply failure

SPECIFIC FEATURES

• Constant remote monitoring of the presence of the AED through a sensor
• Http communication between the cabinet and the AIVIAnet server
• Realtime information concerning incidents or events
• Immediate and automatic routing of data via Email / SMS
• Optional photo surveillance when the cabinet is opened and the AED unit removed

THE AIVIANET SERVER

A MONITORING SOFTWARE APPLICATION

The AIVIAnet server is a software application which ensures straightforward, remote and around-the-clock monitoring of the cabinet and the presence of the AED stored within. Accessible through secure access from any computer connected to the Internet, the AIVIAnet server offers constant remote monitoring of the presence of the AED and its protective cabinet, providing realtime information concerning incidents or events which may occur. Features and benefits of the AIVIAnet server :

• Multilingual version requiring a username and password to access the server
• Incidents displayed with the possibility of verifying and logging information and events
• One or several cabinet(s) monitored at any time (presence of the AED, photos taken upon opening the cabinets, control system, alarms…)
• Programmable to send Email / SMS alerts to one or more recipients should an incident occur
• Recordkeeping of past incidents
• Color-coded data Interpretation
• Geolocation of any AIVIA cabinet connected to the network

A CONFIGURATION AND MAINTENANCE TOOL

In addition to monitoring these cabinets, the AIVIAnet application is an easy-to-use online tool for the configuration and maintenance of these cabinets, featuring an online diagnostic capacity.

• Configuration can be modified from the server
• Online diagnostic capability and interpretation by error code
• Details and automatic routing of incidents (Emails/SMS wordings, recipients…)
• Recordkeeping of maintenance events for each AED and cabinet
• Instructions concerning necessary preventative actions (keeping users informed of the expiration of the pads and batteries, serial numbers…)
