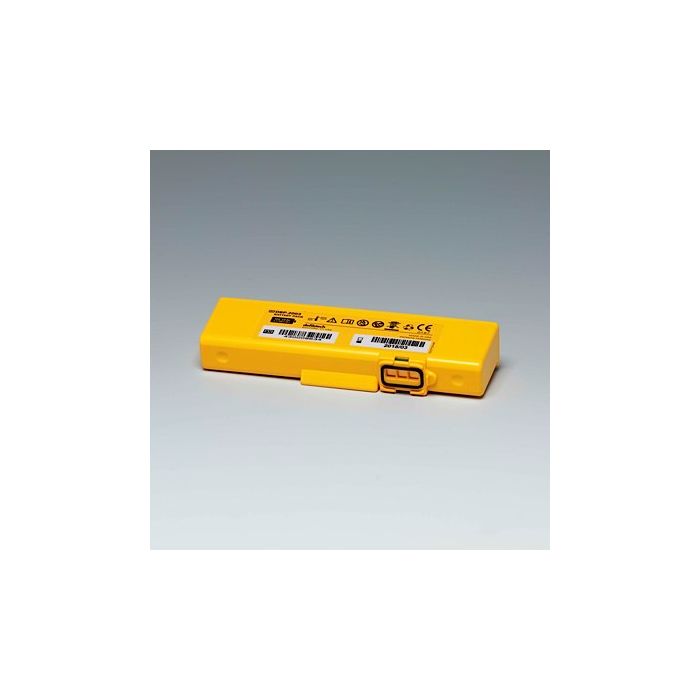

Defibtech Lifeline VIEW AED 4-year Battery (DBP-2003)

The Defibtech Lithium Battery is a disposable lithium manganese dioxide battery made exclusively for your Defibtech Lifeline VIEW/ECG/PRO AED. This battery pack has a 4-year life when installed inside of the Defibtech AED, and has a 4-year manufacturer’s warranty. This battery features a capacity of up to 125 shocks, or 8 hours of continuous operation.

In order to tell if your battery needs to be replaced, check out the status indicator located next to the On/Off button. If it is not flashing green, you can then press the center "soft-key" button to activate the display screen. You will see the battery status indicator showing the amount of battery life remaining. The AED will also emit an audible "chirp" to let you know an alert condition exists.

It is important to always leave the battery in the AED, keeping it in "Rescue Ready" mode. Defibtech brand AEDs operate on batteries only.

It is recommended to always have a spare battery with each AED.

Installation instructions:

• Remove the old battery by pushing the battery pack release latch located just below the battery and just above the electrodes storage slot. Wait 10 seconds before installing the new battery.
• Push the new battery into the slot until you hear the latch click. Battery is now securely installed.
• Once installed the VIEW/ECG/PRO will perform a battery pack insertion test. When the test has completed, the unit will report the status of the battery pack, then return to standby mode.

Power:

• 12V, 2800 mAh

Battery Type:

• Lithium/Manganese Dioxide Disposable, recyclable, non-rechargeable

Battery Capacity:

• 125 shocks or 8 hours continuous operation

Battery Warranty/Life

• 4 years

Low Battery Indicator:

• Visible
• Audible

Defibtech Part Number: DBP-2003
